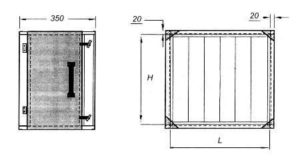

Filter element ASK-3


Used as a pre-filter for intake air.


The frame of the filter element is made either of hot-dip galvanized, standard, aluminized oracid-proof steel sheet.

On the side there is a service door for changing bags. Filter bags are standard size standard bags that assemble larger front surfaces. The clamping mechanism reliably tightens the bagframe against the seal.

Measuring units as standard. Simple housing, insulated if necessary. Thenormal connection of the frame is a push-on connection. Filter class according to bags, standard EU3,l=”130″ Final pressure drop according to EN 799, EU3 = 250 Pa.


For rectangular ducts and vents, according to standard bag sizes. Special dimensions are also possible.
